• Optimización de 5 vías: ajuste de todo el sistema con un solo clic, que ofrece overclocks optimizados y enfriamiento inteligente para tareas intensivas de CPU o GPU.

• Opciones de refrigeración líderes en la industria: Controles integrales para ventiladores y bombas de agua, a través del software Fan Xpert 4 o el aclamado ASUS UEFI.

• Disipador de calor M.2: el disipador de calor ultraeficiente reduce las temperaturas de SSD M.2 hasta en 20 °C para velocidades de almacenamiento SSD sin restricciones y confiabilidad mejorada.

• Aura Sync: iluminación RGB integrada controlable que se sincroniza fácilmente con una creciente cartera de hardware compatible con Aura.

Especificaciones

CPU

• Intel® Socket 2066 Core™ X-Series Processors
• Optimized for Intel® Core™ X-Series 10000 Processor Family
• * The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
• * Refer to www.asus.com for CPU support list

Chipset

• Intel® X299

Memory

• (Intel® Core™ i9 10000 X-Series CPU)
• 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• (Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)
• 8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Intel® Core™ X-series Processors (4-core)
• 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Supports Intel® Extreme Memory Profile (XMP)
• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
• * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

• Supports NVIDIA® Quad-GPU SLI® Technology
• Supports NVIDIA® 3-Way SLI® Technology
• Supports NVIDIA® 2-Way SLI® Technology
• Supports AMD Quad-GPU CrossFireX™ Technology
• Supports AMD 3-Way CrossFireX™ Technology

Expansion Slots

• 44-Lane CPU-
• 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
• 2 x PCIe 3.0 x4 (max at x4 mode) *1
• 1 x PCIe 3.0/2.0 x1 *3
• 28-Lane CPU-
• 3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x16/x8/x1) *4
• 2 x PCIe 3.0 x4 (max at x4 mode) *1
• 1 x PCIe 3.0/2.0 x1 *3
• 16-Lane CPU-
• 3 x PCIe 3.0/2.0 x16 (x16, x8/x8, x8/x8/x1) *4
• 2 x PCIe 3.0 x4 (max at x4 mode) *1
• 1 x PCIe 3.0/2.0 x1 *3

Storage

• Intel® X299 Chipset :
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 5, 10
• Supports Intel® Smart Response Technology, Intel Rapid Start Technology
• Intel® Optane™ Memory Ready

LAN

• Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
• ASUS Turbo LAN Utility
• ASUS LAN Guard

Audio

• Realtek® S1220A 8-Channel High Definition Audio CODEC
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Audio Feature :
• DTS Connect
• DTS Headphone:X
• Optical S/PDIF out port(s) at back panel
• Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Unique de-pop circuit: Reduces start-up popping noise to audio outputs
• EMI protection cover to prevent electrical noise to affect the amplifier quality
• Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

• ASMedia® USB 3.2 Gen 2 controller :
• 1 x USB 3.1 Gen 2 port(s) (1 at mid-board)
• ASMedia® USB 3.2 Gen 2 controller :
• 2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM)
• Intel® X299 Chipset :
• 8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
• Intel® X299 Chipset :
• 4 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)

Back I/O Ports

• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 2 Type-A + USB Type-CTM,
• 4 x USB 3.2 Gen 1
• 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x USB BIOS FlashBack™ Button(s)

Internal I/O Ports

• 1 x AAFP connector
• 2 x Aura RGB Strip Header
• 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
• 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
• 8 x SATA 6Gb/s connector(s)
• 1 x M.2_FAN connector
• 1 x VROC_HW_Key
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 2 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x W_PUMP+ connector
• 1 x Thunderbolt header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s) (Q-Connector)
• 1 x 5-pin EXT_FAN(Extension Fan) connector
• 1 x MemOK! button(s)
• 1 x Thermal sensor connector(s)
• 1 x Power-on button(s)
• 1 x Clear CMOS jumper(s)
• 1 x USB 3.2 Gen 2 front panel connector
• 1 x CPU_OV jumper

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
• ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Operating System

• Windows® 10 64-bit

Form Factor

• ATX Form Factor: 12  inch x 9.6  inch ( 30.5  cm x 24.4  cm )

Marca: Asus
Línea: Prime

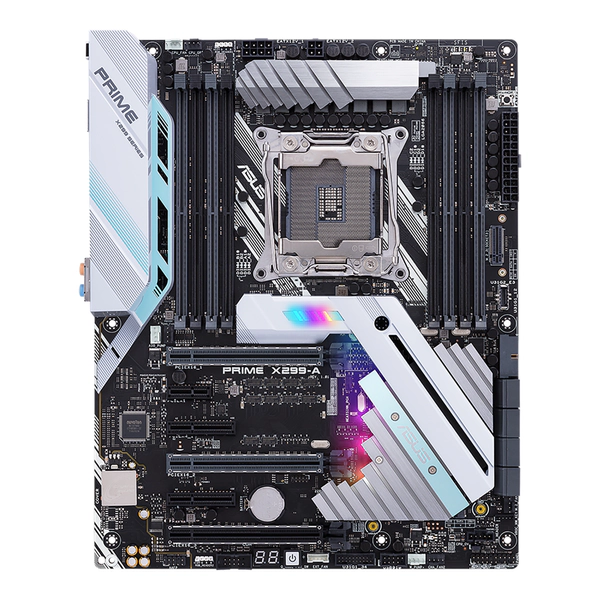

Modelo: X299-A II
EAN: 4718017488594
UPC: 192876488591
Origen: China
